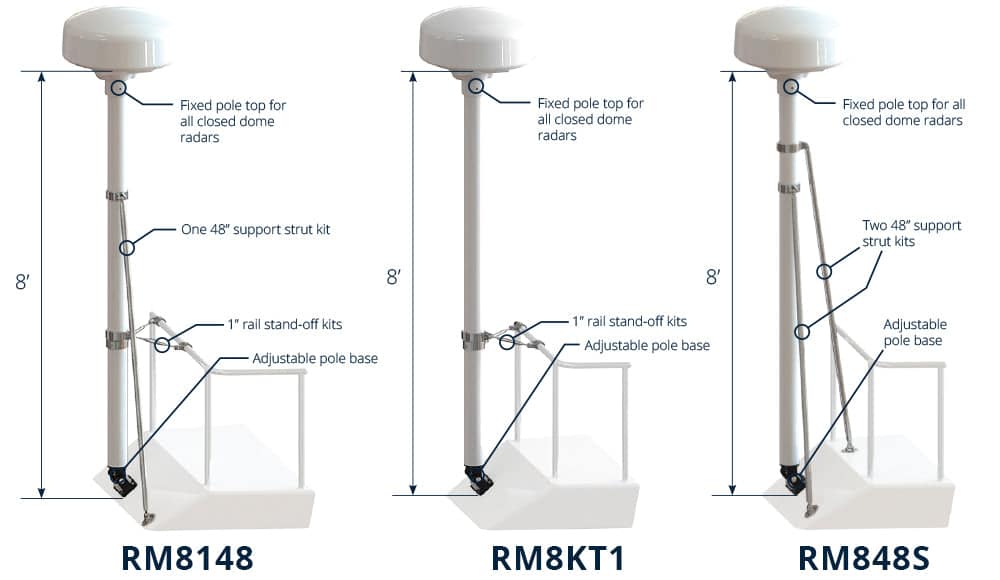

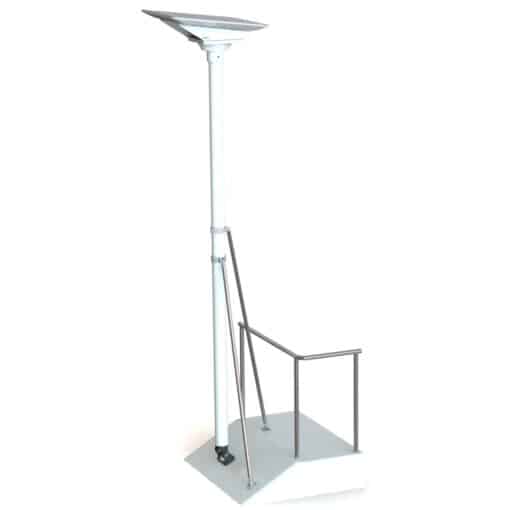

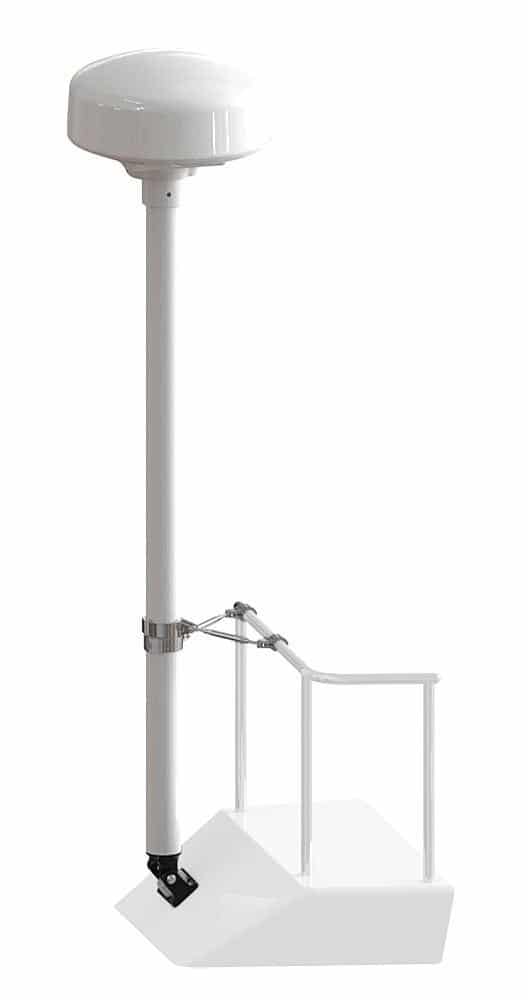

Pole Kits -8′ Tall

DESCRIPTION

The pole itself is 3″ in diameter and is made from marine grade aluminum. Seaview takes the finish to another level by first taking the raw aluminum and putting it through process called Chem Film. Chem Film is a chemical conversion coating that is used as a light coat of protective covering over aluminum. After the Chem Film process it is taken through a 3 part epoxy prime and powder coat. This is all done to ensure the best possible finish and corrosion resistance.

Fixed Top Plate

A Seaview Top Plate is included with each pole kit to fit closed dome radars. No longer the unwanted “swiss cheese” look with a Seaview modular top plate. These plates result in only 4 visible mounting screws to secure electronics. A anodized 1/4″ thick aluminum plate is pre-drilled to fit most marine electronics. This aluminum plate is then encased in a UV stable glass filled ABS white plastic. Each top plate is dimpled to match the provided drill templates for easy and precise drilling for your specific marine electronic.

Supports

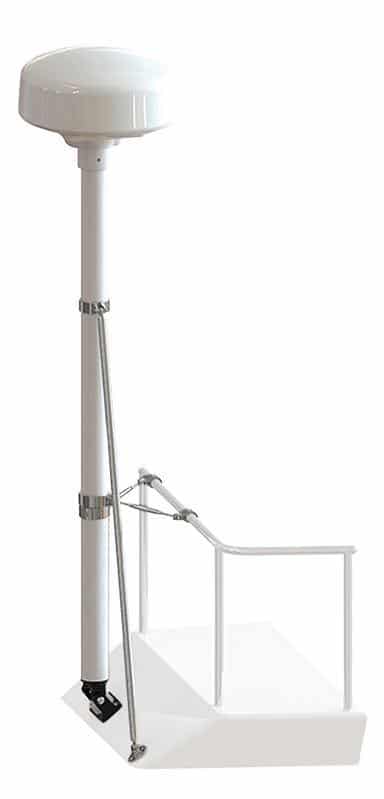

There are several strut supports depending on which Seaview Pole Kit you choose. A rail stand-off kit and a 48″ long strut.

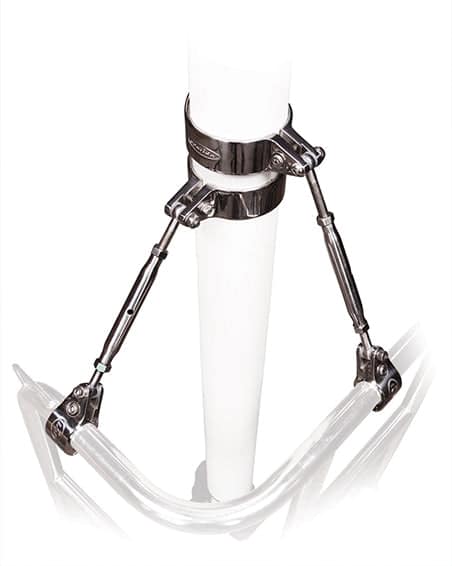

Rail Stand-off Kit
The rail stand-off kit includes two turnbuckle style struts that are adjustable from 6″ to 12″, two stainless steel 3″ pole clamps and two stainless steel 1″ rail clamps.

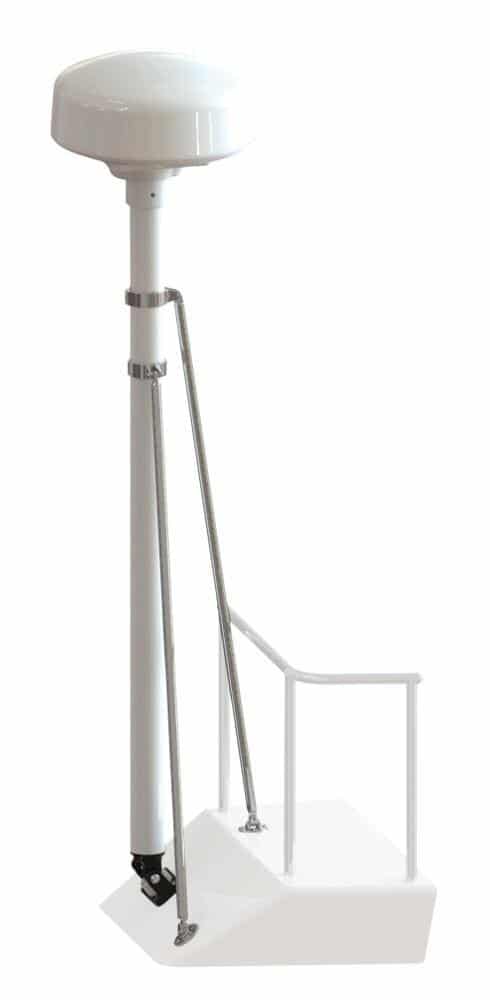

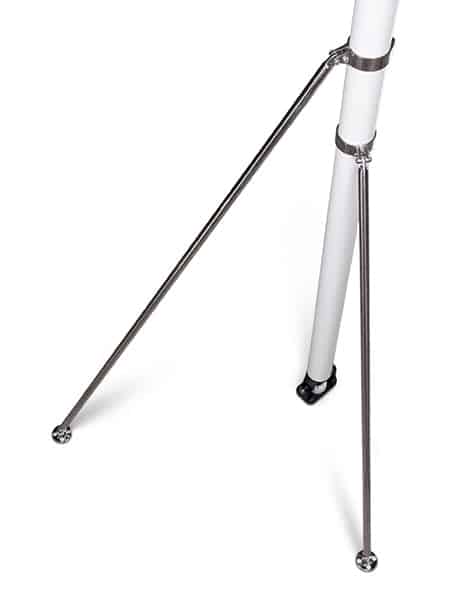

48″ Struts
Also made from high polished stainless steel are the 48″ long struts.

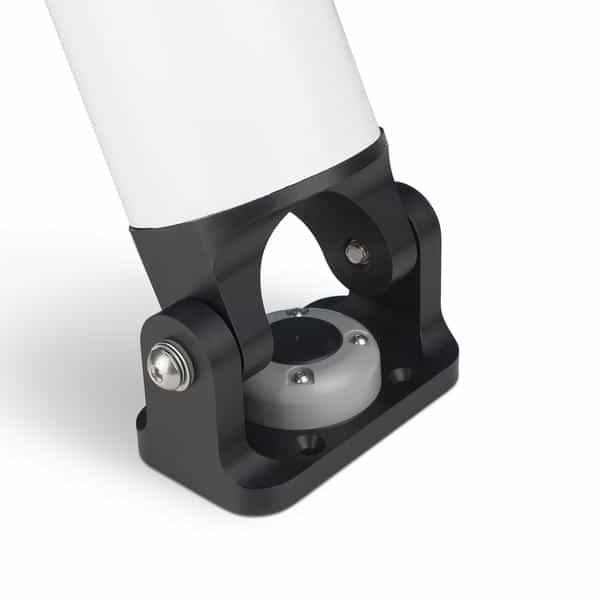

Adjustable Base

A hard anodized adjustable base with a water tight cable gland. The adjustable base measures 5-1/4″ x 3″.
